forge steel check valve with swing/lift structure
Edit Date: 2014/2/25 View:
- Brand: feiqiu
- Standards: API 602
- Class: class150~class1500
- Size: 1/2
- Material: A105, F22, F304, F316 etc.
- Medium: WOG and other corrosive medium.
Introduction
Brief introduction:
forge steel check valve with swing/lift structure
Application Standards:
Design and manufacture: API 602

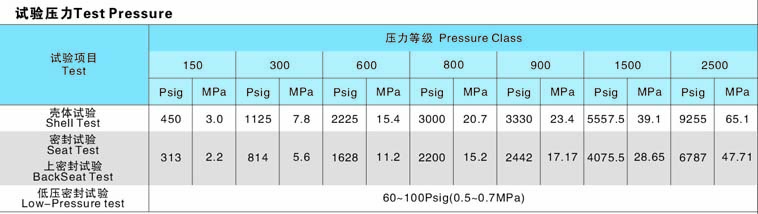

Inspection and test: API 598
Socket-weld dimension: ASME B16.11
End threads dimension: ASME B1.20.1.
Pressure-temperature ratings: ASME B16.34

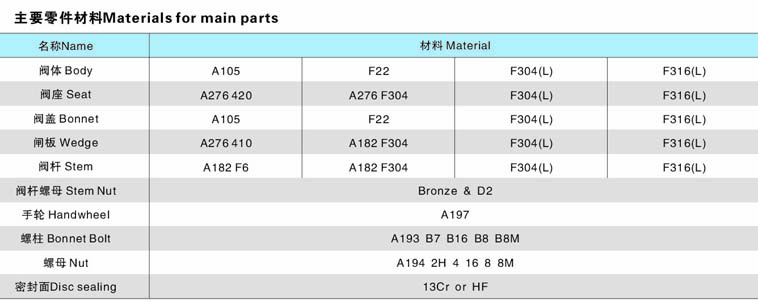

Main parts material:

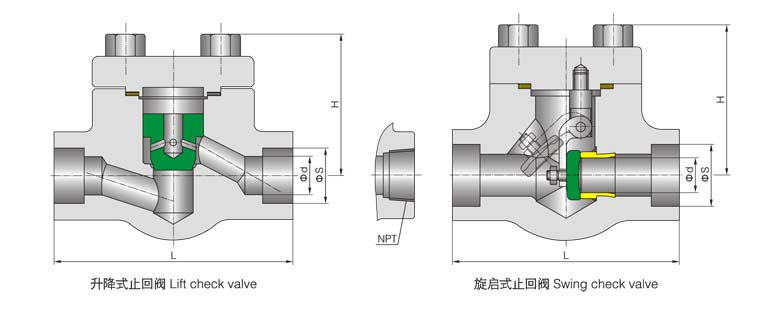

Main outline dimensions:
