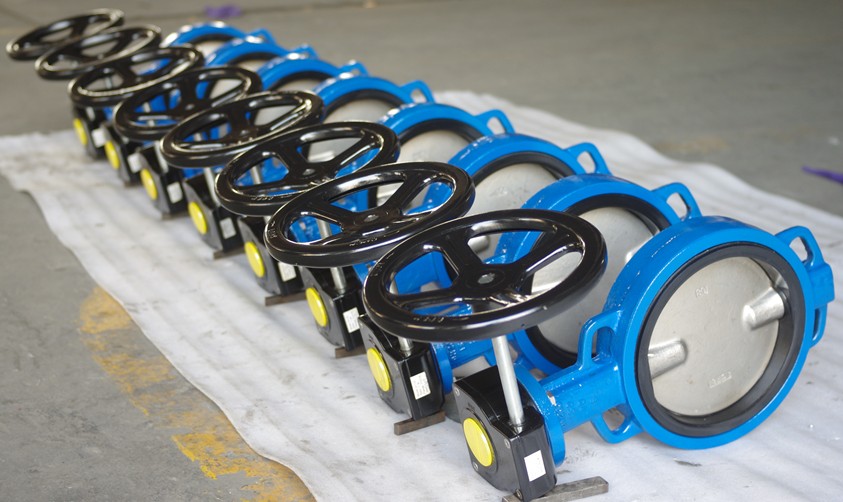

wafer type rubber lined butterfly valve
- Brand: feiqiu
- Standards: API 6D, API 607, ASME B16.34, ANSI B16.5
- Class: 1.0MPa~1.6MPa
- Size: DN50-DN1200
- Material: Ductile iron , cast iron
- Medium: Service: water, oil, etc.
1. Wafer type rubber lined butterfly valve body is rubber lined internally , the disc adopts anticorrosive material such as chrome plated ductile cast iron,stainless steel ,copper alloy etc,therefore the wafer type rubber lined butterfly valve can resist corrosion .
2. Wafer type rubber lined butterfly valve has centric structure,bi-directional seal , which can be assembled in either direction , not limited by direction of the medium flow .
3. Wafer type rubber lined butterfly valve is wafer type ,short size,small volume, light weight and space-saving .
4. Wafer type rubber lined butterfly valve adopts sectional axis design , thin disc , low flow resistance .
Materials for Main Parts
| No. | Part | Material |
| 1 | Body | Ductile iron , cast iron ,cast steel,stainless steel |
| 2 | Disc | Ductile iron , cast iron ,cast steel,stainless steel |
| 3 | Seat | NBR,EPDM,VITION,PTFE |
| 4 | Stem | stainless steel |
| 5 | O-Ring | NBR,EPDM,VITION |

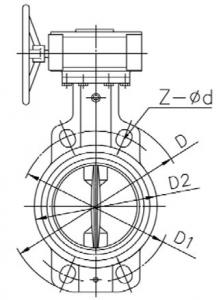

Main Connection Dimensions
| DN | PN | L | D1 | D | Z-d | H | D371/3 Type | ||
| (mm) | (MPa) | H0 | L1 | L2 | |||||
| 50 | 1.0/1.6 | 43 | 125 | 100 | 4-18 | 112 | 270 | 200 | 130 |
| 65 | 46 | 145 | 120 | 4-18 | 115 | 290 | 200 | 130 | |
| 80 | 49 | 160 | 135 | 4-18/8-18 | 120 | 355 | 200 | 130 | |
| 10 | 56 | 180 | 155 | 8-18 | 140 | 425 | 220 | 155 | |
| 125 | 64 | 210 | 185 | 8-18 | 165 | 460 | 220 | 155 | |
| 150 | 70 | 240 | 210 | 8-23 | 180 | 503 | 220 | 155 | |
| 200 | 71 | 295 | 265 | 8-23/12-23 | 210 | 616 | 220 | 155 | |
| 250 | 76 | 350/355 | 320 | 12-23/12-25 | 245 | 690 | 220 | 155 | |
| 300 | 83 | 400/410 | 370 | 12-23/12-25 | 285 | 830 | 260 | 260 | |
| 350 | 92 | 460/470 | 433 | 16-23/16-25 | 315 | 940 | 260 | 260 | |
| 400 | 105 | 515/525 | 485 | 16-25/16-30 | 335 | 975 | 385 | 260 | |
| 450 | 114 | 565/585 | 535/550 | 20-25/20-30 | 380 | 1040 | 400 | 265 | |
| 500 | 127 | 620/650 | 590/610 | 20-30/20-37 | 415 | 1105 | 400 | 265 | |
| 600 | 154 | 725/770 | 670/720 | 24-30/24-37 | 475 | 1370 | 490 | 280 | |
| 700 | 165 | 840 | 805 | 24-34/24-41 | 555 | 1525 | 504 | 380 | |
| 800 | 190 | 950 | 913 | 28-34/28-41 | 640 | 1670 | 504 | 380 | |
| 900 | 203 | 1050 | 1013 | 28-34/28-41 | 720 | 1910 | 632 | 470 | |
| 1000 | 246 | 1160/1170 | 1122 | 28-34/28-45 | 770 | 2070 | 720 | 490 | |
| 1200 | 254 | 1380/1390 | 1335 | 32-41/32-51 | 890 | 22315 | 720 | 490 | |
