ANSI Cast steel globe valve
Edit Date: 2016/1/7 View:
- Brand: feiqiu
- Standards: BS 1873, API 6D/600, ASME B16.34
- Class: class150~class900
- Size: 1/2"-12"
- Material: wcb, S.S, WC6, WC9 etc.
- Medium: water, oil, vapor,gas etc
Introduction
Brief introduction:
ANSI Cast steel globe valve application standards:
Design and manufacture: Cast steel globe valves according to BS 1873,API 6D/600 and ASME B16.34;
Inspection and test: API 598
End flange dimension: ASME B16.5
BW end dimension: ASME B16.25.
Socket-weld dimension: ASME B16.11
Face to face or end to end: ASME B16.10.
Pressure-temperature ratings: ASME B16.34
outside screw & yoke,rising stem, solid wedge or screw renewable disc
Suitable medium: water, oil, vapor,gas etc.
Body material: WCB, WC5, WC6, WC9, C12, CF3, CF8, CF3M, CF8M
Operation: manual,worm gear operated, motor actuated.

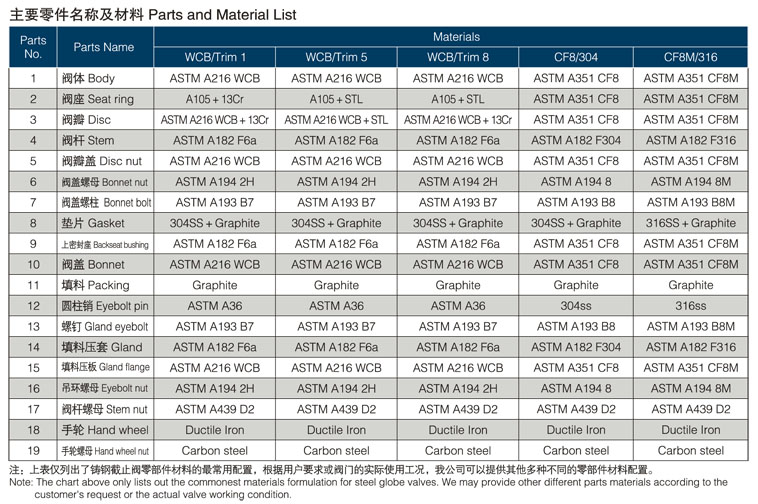

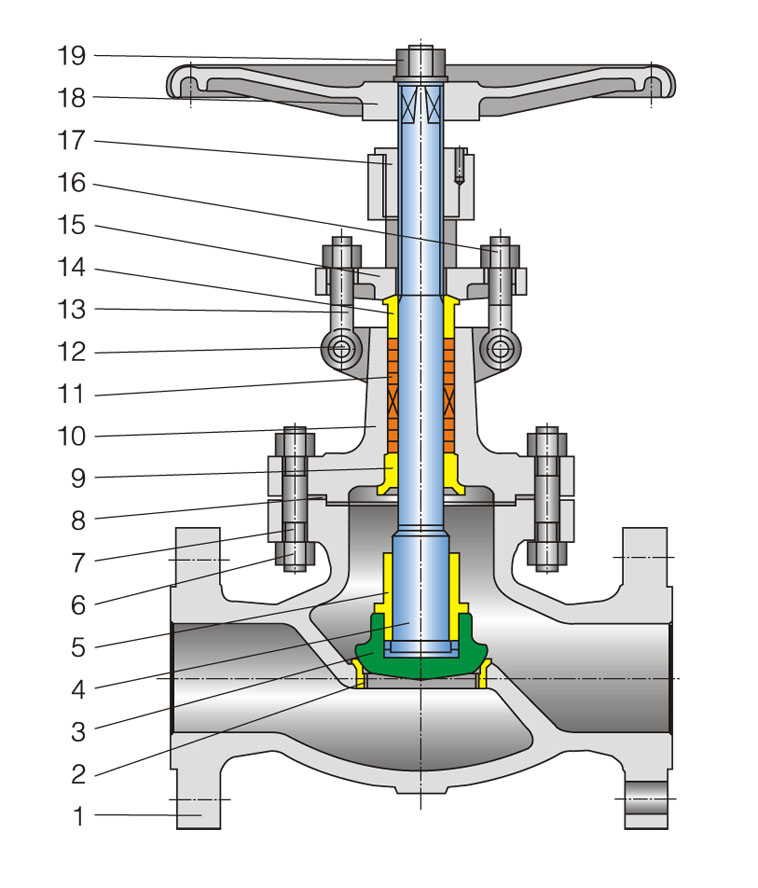

Structural drawing and the material of main parts:

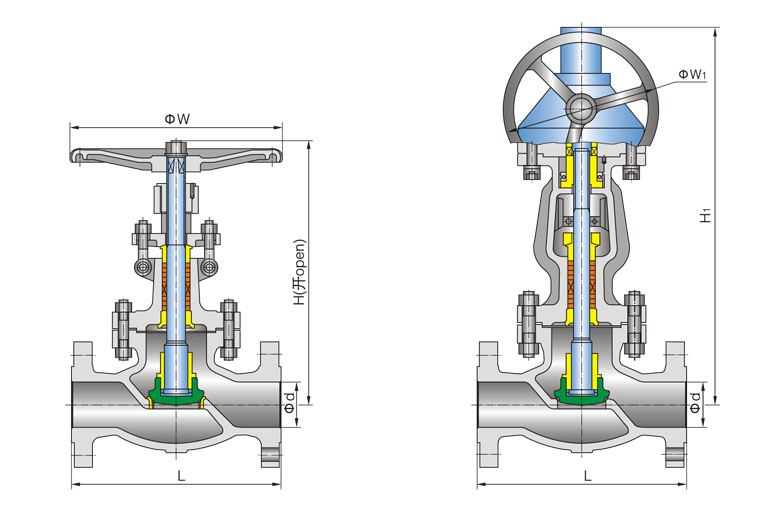

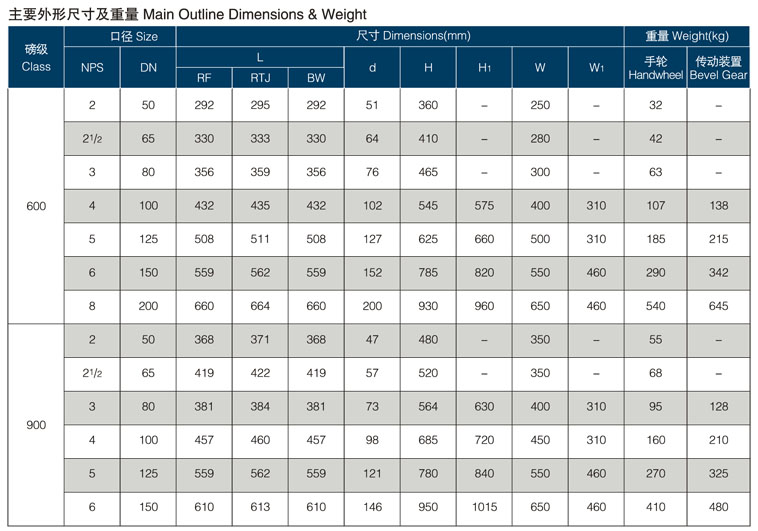

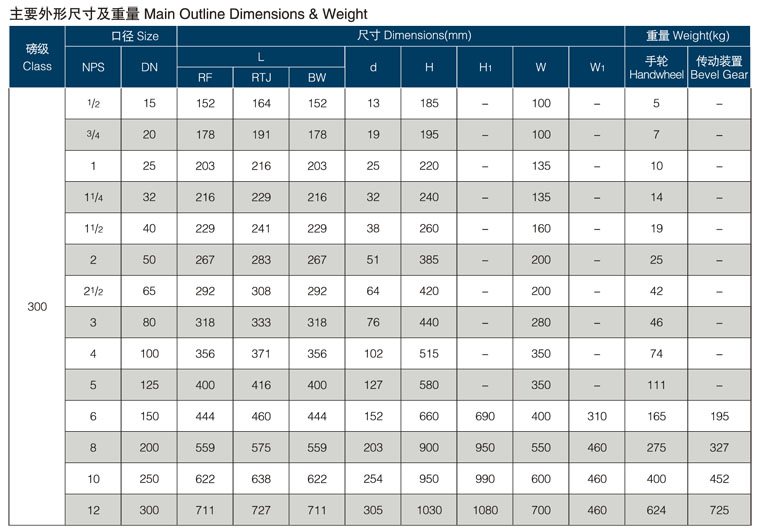

Main outline dimensions:
